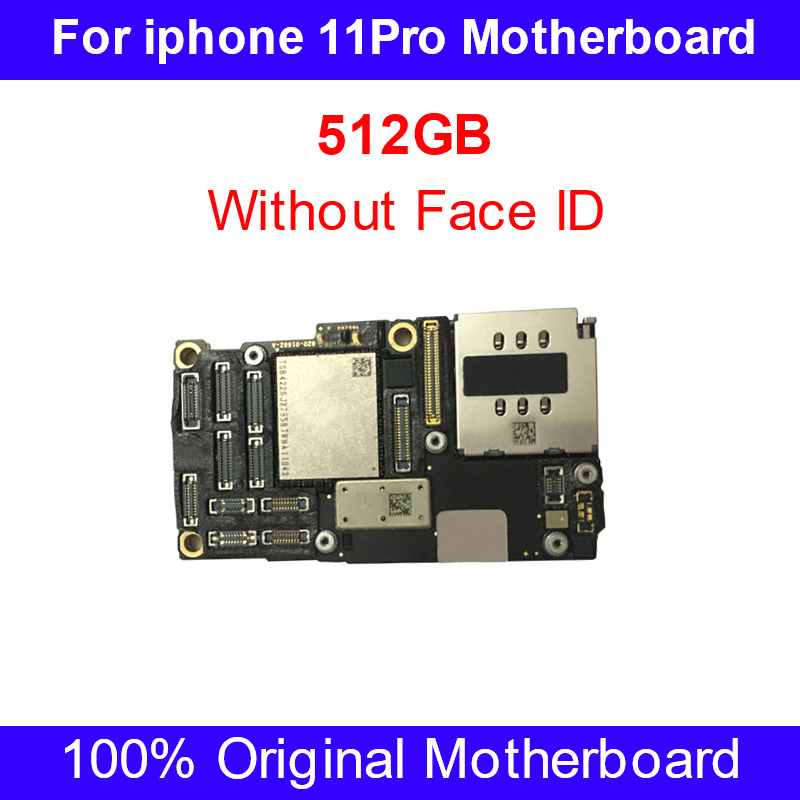

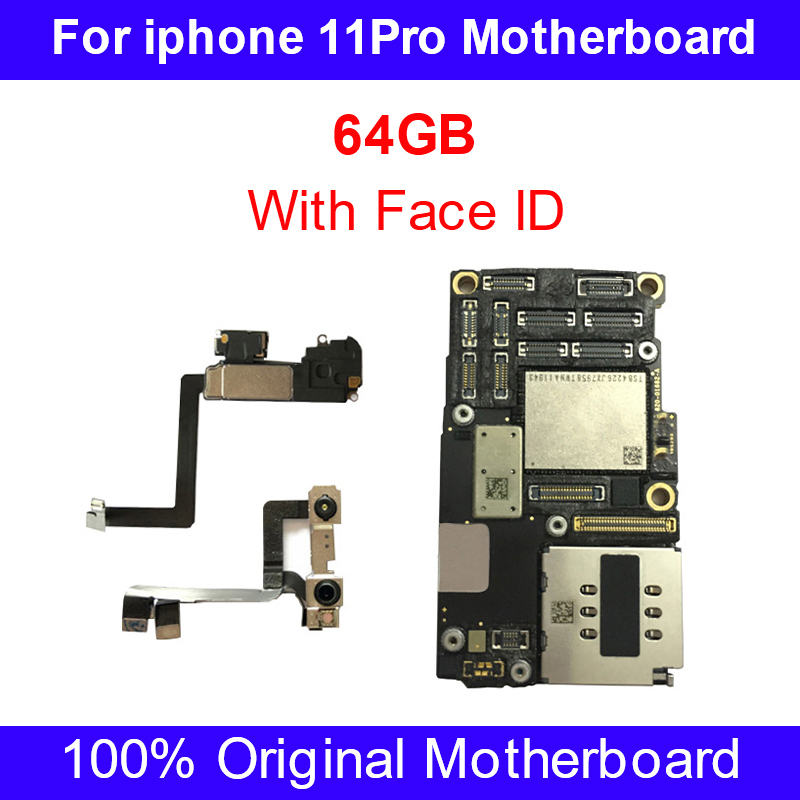

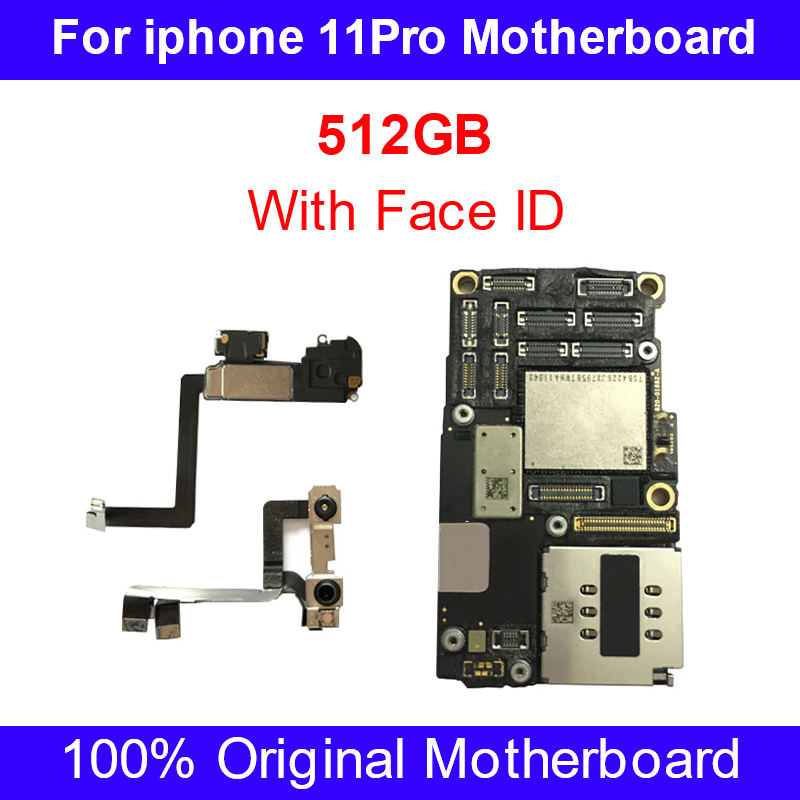

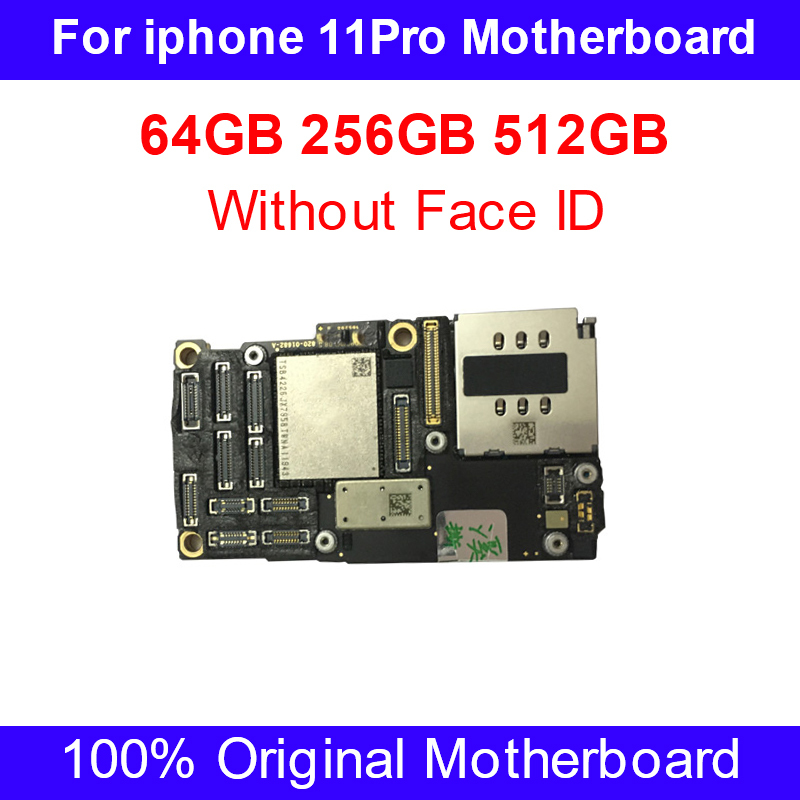

Iphone 11P Motherboard

Core Components

1. SoC (System on a Chip):

   • Apple A13 Bionic (7nm process)

   • CPU: 6-core (2x "Lightning" performance cores + 4x "Thunder" efficiency cores)

   • GPU: 4-core Apple-designed graphics processor

   • Neural Engine: 8-core NPU (1 trillion operations/sec)

2. Memory (RAM):

   • 4GB LPDDR4X

   • Package-on-Package (PoP) design stacked atop the A13 chip.

3. Storage (NAND Flash):

   • Soldered onboard; 64GB, 256GB, or 512GB capacities.

   • NVMe-based protocol.

4. Modem:

   • Intel XMM 7660 LTE modem

   • 4G LTE Advanced (Gigabit-class), no 5G support.

5. Connectivity:

   • Wi-Fi 6 (802.11ax)

   • Bluetooth 5.0

   • NFC with reader mode

   • U1 Ultra-Wideband chip (for spatial awareness)

6. Power Management:

   • Custom Apple PMIC (Power Management Integrated Circuit)

   • Manages battery charging, power distribution, and efficiency.

Physical Design

• Stacked Logic Board: Dual-layer design for compactness, increasing repair complexity.

• Component Integration:

  • Tristar IC (charger IC)

  • Tigris IC (USB controller)

  • Audio IC (manages speakers/microphones)

  • Baseband CPU (cellular communication)

Common Issues

• Baseband Failures: "No Service" issues due to modem or baseband CPU defects.

• Audio IC Failure: Causes malfunctioning microphones/speakers.

• Charging Issues: Often linked to Tristar or Tigris IC failure.

Repair Notes

• Component-Level Repair: Requires microsoldering expertise due to miniaturization.

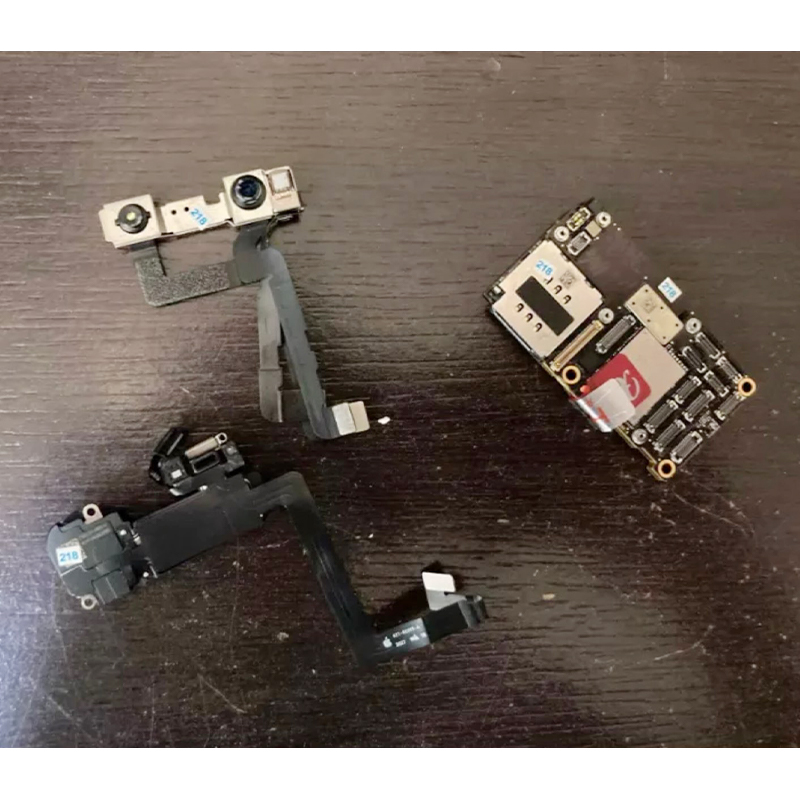

• Serialization: Critical components (e.g., display, camera) are paired to the board; replacements may require reprogramming.

• Water Damage: Highly susceptible to corrosion due to board density.
